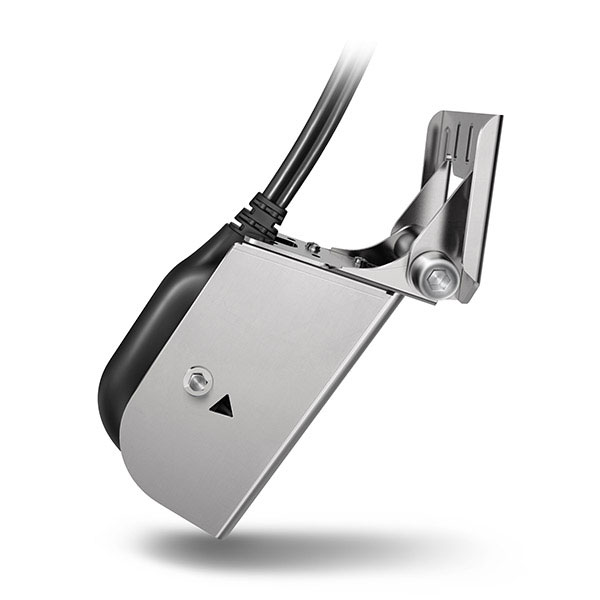

Panoptix PS21 TM Forward Transducer

Panoptix PS21 TM Forward Transducer

It’s very unnerving, to say the least, when cruising at up to 8 knots in unfamiliar waters, and an obstacle or sand bar suddenly appears. So we designed Panoptix PS21-TM with FrontVü sonar to give boaters enhanced situational awareness.¹ FrontVü sonar shows approaching obstacles, sandbars and other hard obstructions to give you time to respond and avoid a collision or running aground. It’s a great way to protect your boat and your passengers.

See Submerged Objects Ahead of Your Boat
  • Adds FrontVĂĽ and LiveVĂĽ Forward — 2 of the most compelling views of Panoptix, the most unique and innovative sonar on the water
  • FrontVĂĽ sonar shows submerged obstructions as you approach them within a 300-foot forward range; helps you avoid collisionsÂą
  • LiveVĂĽ Forward sonar gives you the unique ability to see fish - even divers - swimming live under and ahead of your boat with a 100-foot forward range in real time
  • Both views work when boat is moving or stationary
  • Includes transducer transom mounting kit

Product Specification:

Frequency 417 kHz
Power 48 W
Beamwidth LiveVü & FrontVü: 20°x90°
Maximum depth 300 ft. Down; 300 ft. Forward
Depth/Speed/Temperature Depth and Temperature
Number of pins Ethernet
Cable length Power Cable 30 ft.; Ethernet Cable 30 ft.
Supported deadrise/Transom angles 0°-70° transom

Panoptix PS21-TM also features LiveVĂĽ Forward sonar to give you the unique ability to see real-time sonar views under and ahead of your boat with a 100-foot forward range. You can actually see fish swimming. You can also keep track of the whereabouts of swimmers and divers, because LiveVĂĽ Forward works even when your boat is stationary.

Easy to use with compatible Garmin echoMAP™ CHIRP 7- and 9-inch models, GPSMAP® 7400/7600 series, GPSMAP 8000/8500/8400/8600 Glass Helm series and GPSMAP 721/741/820/840/1020/1040 series chartplotters. Includes transducer transom mounting kit.

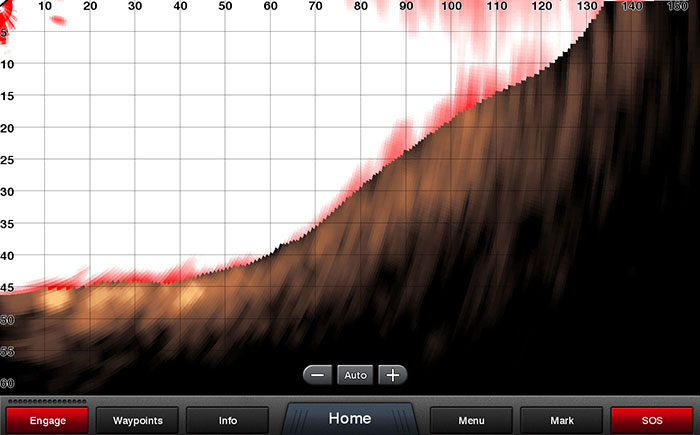

FrontVĂĽ aids collision avoidance by showing obstructions with a 300-foot forward range.Âą

LiveVĂĽ Forward shows fish and divers swimming in real time with a 100-foot forward range.

The ability to effectively avoid forward collisions with FrontVĂĽ sonar decreases as speed rises above 8 knots.
