Garmin GT22HW-TM

Garmin GT22HW-TM

Features

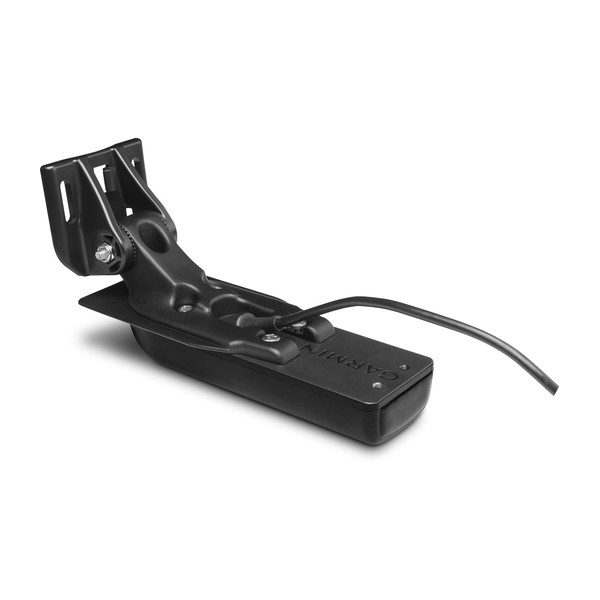

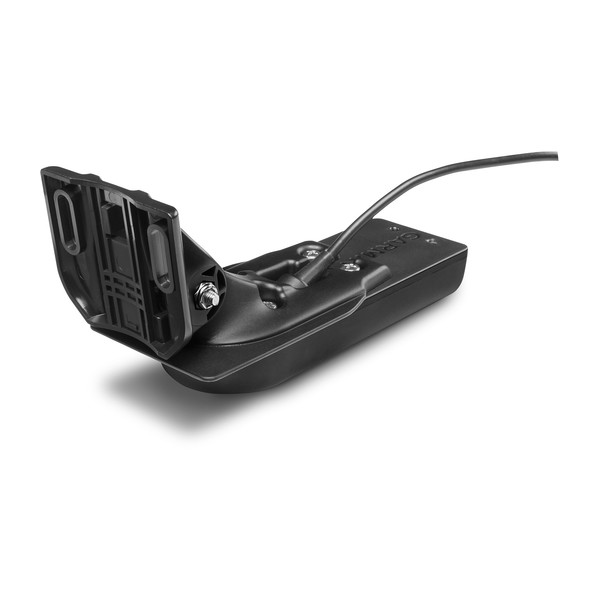

GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearV├╝ scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP ClearV├╝ (455/800 kHz) element has a power rating of 350 W.

GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.

  • Garmin GT22HW-TM
  • Garmin GT22HW-TM
  • Garmin GT22HW-TM

Product Details:

FrequencyCHIRP High Wide (150-240 kHz); ClearV├╝ CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
PowerCHIRP Traditional 250 W; ClearV├╝ 350 W
BeamwidthTraditional (24-16); ClearV├╝ (2.0 @ 455 kHz) & (1.0 @ 800 kHz)
Maximum depthTraditional: 800 ft.; ClearV├╝: 500 ft.
Depth/Speed/TemperatureDepth and Temperature
Number of pins8-pin
Cable length20 ft.
Supported deadrise/Transom angles0┬░-70┬░ degree transom
