Garmin GPS MAP 585 Plus Device

Garmin GPS MAP 585 Plus Device

Find fishing spot, Catch fish with the Power of Garmin CHIRP

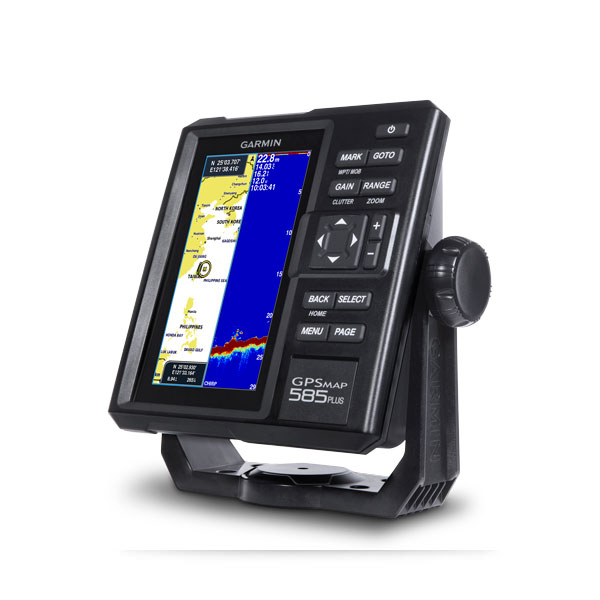

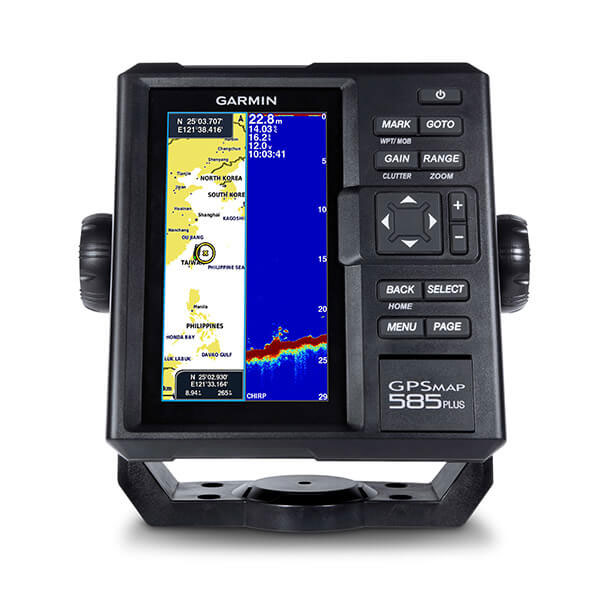

The all-new GPSMAP 585 Plus chart plotter / sonar combo is available in 6-inch display. GPSMAP 585 Plus is offered a worldwide basemap and support all Garmin marine charts also with Asian multi language support and developed the target for semi-commercial fishing market. GPSMAP 585 Plus gives you high wide CHIRP sonar and CHIRP ClearVü scanning sonar capabilities which shows crisp fish arches with excellent target separation and provides clear images of structure below the boat. Supporting GPS, GPS + GLONASS, GPS + BEIDOU 3 kind of positioning modes. New Garmin Quickdraw™ Contours software included lets you create your own maps, with up to 1-foot contour lines, on any body of water.

Features

  • Made for INDIA with India local languages support.
  • Made for INDIA with India local languages support.
  • Available in 6-inch WVGA color, portrait mode display. Offers a keyed interface with dedicated buttons.
  • CHIRP sonar sends a continuous sweep of frequencies ranging from low to high. CHIRP sonar is able to create crisper fish arches with better target separation.
  • Built-in 600 W (RMS) CHIRP traditional sonar and CHIRP ClearVĂĽ scanning sonar gives a clearer picture of what’s below the boat as a photographic image with representation of objects, structure and fish.
  • Compatible with GPS, GLONASS and BeiDou powerful positioning systems what quick and easy to drop up to 12,000 accurate waypoints let you find your way back to your secret fishing hot spots.
  • Free, easy-to-use Quickdraw Contours software instantly creates personalized HD fishing maps is included.
  • GPSMAP 585 Plus supports for typical NMEA0183 and RS422 communication within 3rd party sensors and accessories.
  • 2 standard SD™ card slots provides expandable memory for accessory map purchases such as LakeVĂĽ HD Ultra maps and BlueChart® g2 Vision® charts.

The Power of Garmin CHIRP

The built-in sonar capabilities of GPSMAP 585 Plus includes CHIRP sonar, the most sophisticated sonar technology available for the fishing and boating public. CHIRP sonar provides amazingly clear target separation and definition because it puts even more energy onto the target than traditional sonar. It also includes sonar-recording capability that coordinates the timing of the sonar return with your boat's position and saves digital information for playback on a computer using HomePort™ planning software. Use the user data sharing cable to share waypoints and routes between multiple devices.

Product Details:

Physical dimensions 176.0 mm x 190.0 mm x 66.0 mm
Display resolution 480 x 800 pixels
Display type WVGA display
Weight 816.0 g
GPS receiver GPS/GLONASS/BeiDou, internal
Power consumption 7.6 W
Accepts data cards 2 standard SD
Waypoints 12,000
Routes 200
Transmit power 600W (RMS)
Voltage range 10V - 36V DC input
Sonar Frequency 50/77/200kHz CHIRP (Low, Mid, High)
Scanning Sonar Frequency CHIRP 260/455/800kHz
Maximum depth 1,750 ft freshwater, 830 ft saltwater (depth capacity is dependent on water bottom type .
Brand Garmin

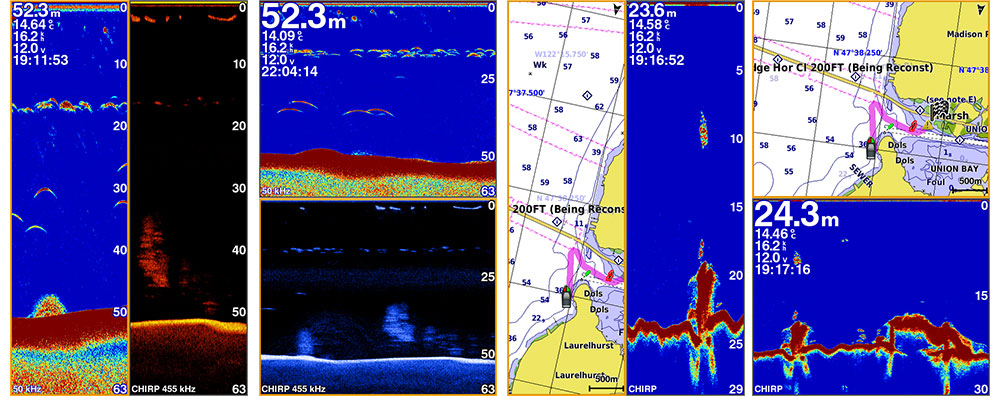

Clearest Scanning Sonar on the Water

Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image down below your boat. Traditional Garmin HD-ID™ sonar and ClearVü scanning sonar are combined into 1 transducer.

With the Best Maps on the Water Supporting

Two standard SD™ card slots provide expandable memory for accessory map purchases such as BlueChart® g2, BlueChart® g2 Vision®. The BlueChart g2 Vision provide exclusive Garmin Auto Guidance, a technology that directs you to your hot spots. Based on your boat’s specifications, Auto Guidance instantly creates a visual path you can follow to avoid shallow water and other charted obstructions.

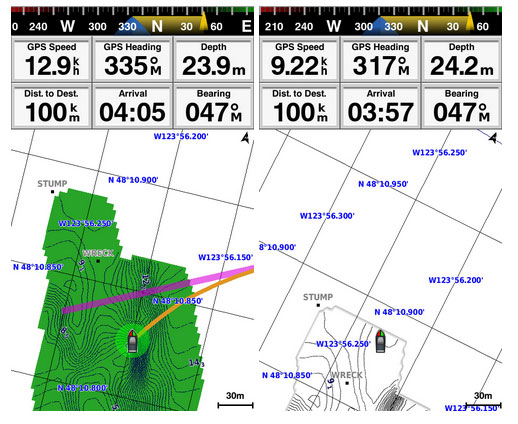

Quickdraw Contours: Create Your Own HD Maps

Quickdraw Contours is a free, easy-to-use software feature already installed on your GPSMAP 585 Plus. It instantly creates your own personalized HD fishing maps on screen with 1-foot contours. Tailor the maps as needed; you own them. Keep the data for yourself, or share it with Garmin or your friends. No special surveying expertise is required. You just fish while Quickdraw Contours creates maps. There’s no waiting around or sending your files away like other mapping software requires — your results appear instantly.

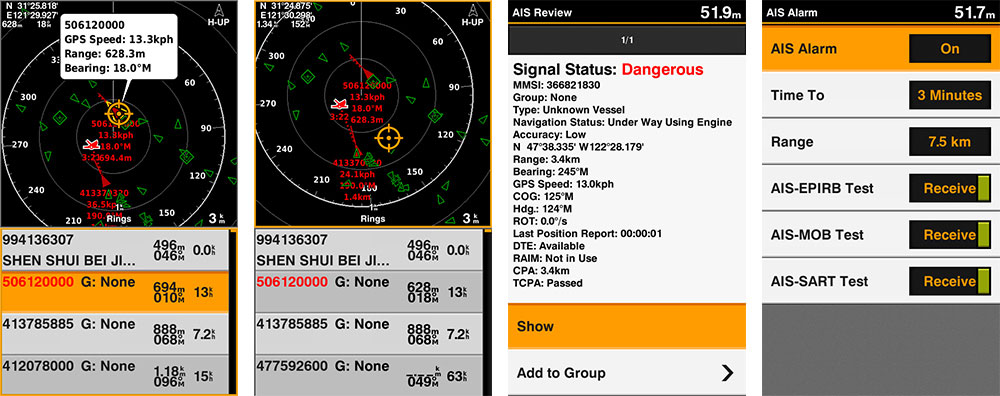

AIS Radar Support

Show you the detailed AIS Radar view and AIS list at the same page. Move the cursor and review particular item on the radar view to see the detail information of highlighted vessel. Drop VRM/EBL and measure distance on the AIS Radar view window and to focus a AIS vessel through the AIS list to see the detail of it.

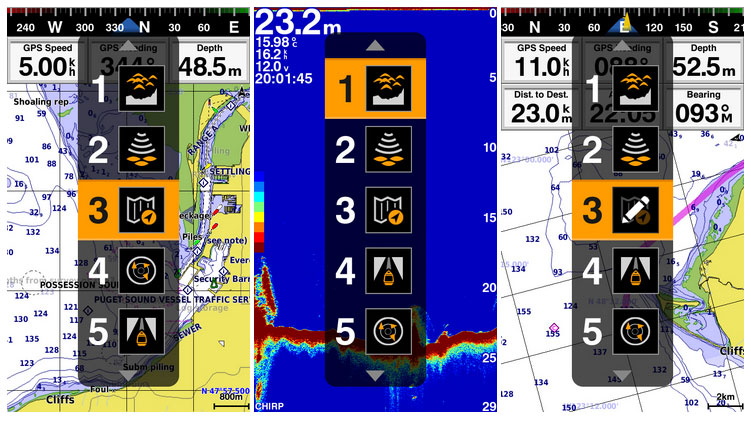

Quick PAGE Sequence

Dedicated PAGE button to have a quick features exchange. Press the “PAGE” button to let user can switch from frequently use feature one by one quickly. With holding the "PAGE" button user can edit their prefer 5 frequently use pages themsleves.

Digital Zoom and Shift Zoom Supporting

Digital Zoom and Shift Zoom features let you control your owned display portion as what you prefer to shows in detailed

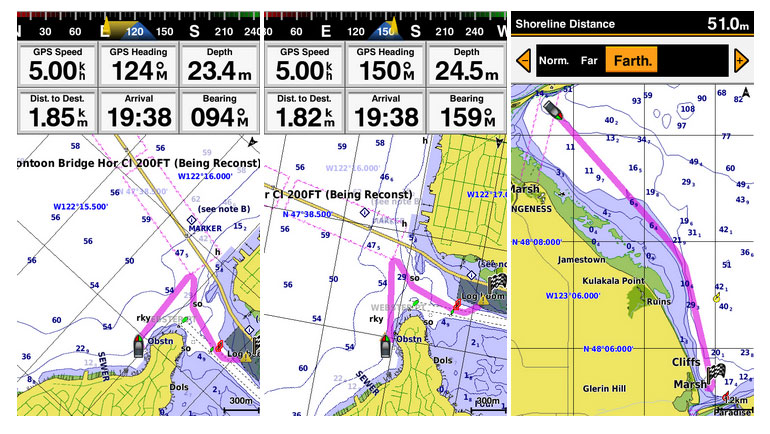

Enhanced Auto Guidance

Just enter the location where you want to go and patented Garmin Auto Guidance technology instantly searches through relevant charts to create a safe, virtual pathway on the display that helps you avoid low bridges, shallow water and other charted obstructions en route.

With enhanced Version 2.0, you have access to more features and capabilities. You’re able to adjust the calculated Auto Guidance pathway by inserting via points at interim stops or landmarks along your desired route. You can easily review hazard points along your calculated path. Other 2.0 enhancements give you the ability to calculate arrival times at any point on your route (great for timing arrivals to correspond with bridge openings and other time-critical events). Better still, you can now save your plotted Auto Guidance paths for future navigation by backing them up on an SD™ card with your BlueChart g2 Vision or LakeVü HD Ultra cartography¹.
