Garmin AQUAMAP 100xs/80s

AQUAMAP 100xs/80s

10" Keyed Chartplotter/Sonar Combo for Fishing

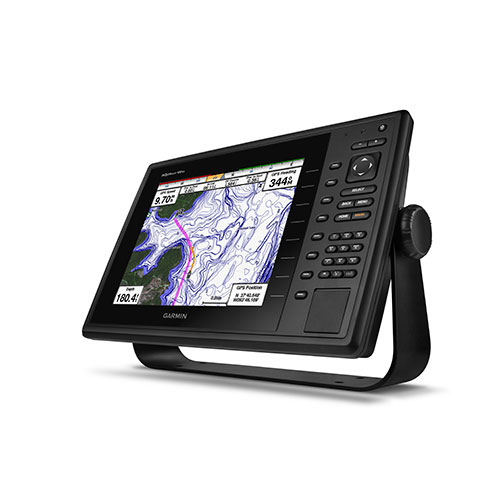

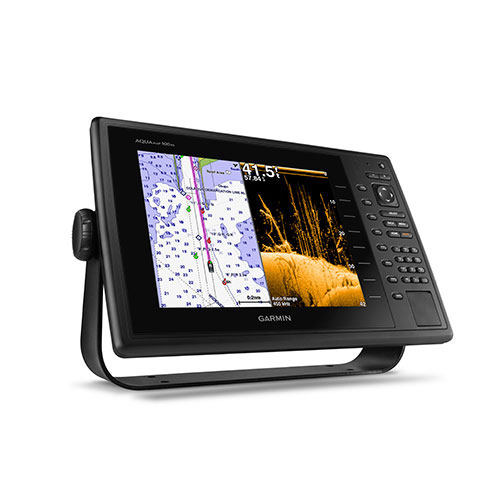

The AQUAMAP 100xs keyed chartplotter/sonar combo has a 10” color SVGA display and comes preloaded with a worldwide basemap. HD-ID, CHIRP and ClearVü with CHIRP sonar technology are built-in allowing you the flexibility to choose from several optional transducers.

Features:

  • Keyed chartplotter/sonar combo with 10” color SVGA display
  • Preloaded worldwide basemap
  • Built-in Garmin HD-ID™ 1 kW sonar, CHIRP and ClearVü™ scanning sonar with CHIRP technology
  • High-sensitivity internal 10 Hz GPS/GLONASS receiver
  • Supports all Garmin marine radar

Product Details:

Model AQUAMAP 100xs
Display type SVGA display
Weight 4.7 lbs (2.1 kg)
Waterproof IPX7
Receiver 10 Hz high-sensitivity
Antenna with external connection
Mounting options Bail, flat or flush
Power consumption Max power usage at 10 Vdc: 20 W
Accepts data cards 2 SD cards
Waypoints 12,000
Routes 200
Track log 25,000 points; 100 saved tracks
Unit dimensions 35.9 x 23.6 x 7.5 cm
Display resolution 800 x 600 pixels

Super-fast 10 Hz GPS/GLONASS

High-sensitivit 10 Hz GPS/GLONASS provides position and heading updates 10 times per second (Garmin GA38 is included & required for GPS/Chart-plotter function)

Extreme Sonar Capabilities

The built-in sonar capabilities of the AQUAMAP 100xs gives you the freedom and flexibility to choose from several optional transducers, including traditional, CHIRP and all-in-one HD-ID/ClearVü scanning sonar with CHIRP technology. Add a GCV™ 10 black box sonar for both ClearVü and SideVü™ scanning sonar with CHIRP technology (sold separately).

When used with a compatible CHIRP transducer (sold separately), AQUAMAP 100xs displays crystal-clear sonar images detailing fishing hot spots, ship wreckage or a diving location. With Garmin CHIRP technology, you get remarkable target separation and resolution at extraordinary depths, and can dial into specific frequencies to target certain species of sport fish. Bottom contours are more visible, even at speed, and signal noise can be suppressed at greater depths to provide a more timely interpretation of what’s below for safer navigation and better fishing.

Expand with Radar

Featuring a built-in radar port, AQUAMAP 100xs can be interfaced with Garmin’s line of affordable GMR™ marine radar systems (sold separately). Whether you’re adding radar now or in the future, you’ll enjoy the convenience of plug-and-play installation as well as the power, range and high-definition targeting of our proven radar offerings.

Networking

The AQUAMAP 100xs offers select networking capabilities that allow you to share features with other compatible AQUAMAP units, such as radar, GCV 10 ClearVĂĽ and SideVĂĽ scanning sonar, supplemental maps, and user data, such as waypoints, routes and tracks.

Special Fishing Features

Supported fishing features include boundary lines and color rejection
